Years built: | 1960-196? |
Bikes produced: | 444 |
Price in: | 1966: 275.000 lira |
Vehicle Ident. # (VIN): | |
Engine: | 4-Cycle OHV, Single Cylinder, 172.4cc, 13 CV at 7500 1/min |
Bore and Stroke: | 60 x 61 mm |
Compression Ratio: | 9:1 |
Top Speed: | 130 km/h |
Gas Capacity: | |
Transmission: | 4-Speed |
Carburetor: | Dell'Orto UB22 BS2 |
Electrical System: | 6 Volt / 45 Watt, LiMa Magneti Marelli, Battery 6 Volt 7Ah |
Saddle Height: | |
Ground Clearance: | |
Wheelbase: | |
Length: | |
Weight: | 112 kg |
Wheel Rim: | 2 1/4 x 17 |
Tire Size (Front): | 2.50 x 17 R |
Tire Size (Rear): | 3.00 x 17 S |
Fuel consumption ø 2,9 litres / 100 kilometers;

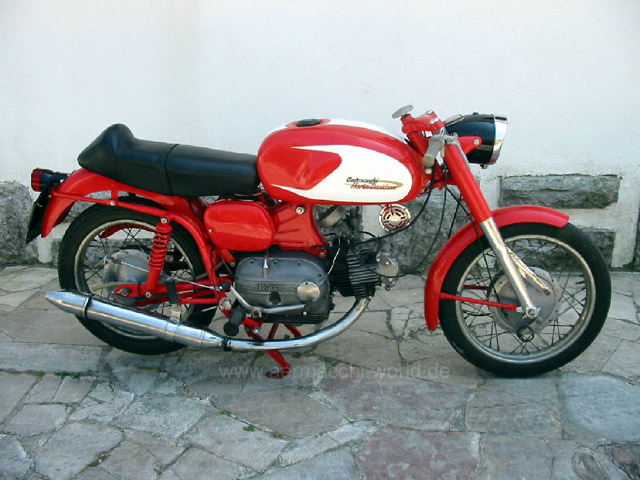

Thanks to Michael Wörle for specs and Joao Torres for the picture of
his bike!
