| Years built: | 1959-1967 (1st series) | 1970-1972 (2nd series) |
| Bikes produced: | 3323 (1st & 2nd series together) | |
| Price in: | 1966: 285.000 lira | 1967: 300.000 lira |
| Vehicle Ident. # (VIN): | ||
| Engine: |
4-Cycle OHV, Single Cylinder, |
4-Cycle OHV, Single Cylinder, 246.2 cc, 18 CV at 6750 1/min |
| Bore and Stroke: | 2.598 x 2.2834 Inches (66 x 72 mm) | |
| Compression Ratio: | 8.5:1 |
8.5:1 |
| Top Speed: | 140 km/h | 140 km/h |
| Gas Capacity: | 4.49 US-Gallons (17 Liter) | |
| Transmission: | 4-Speed (1st series) | 5-Speed |
| Carburetor: | Dell'Orto UB24 BS2 | Dell'Orto UB24 BS2 |
| Front Suspension: | Ceriani / Aermacchi | |
| Electrical System: | 6V/60W, LiMa Bosch, Battery 6V 7Ah | 6V/60W, LiMa Bosch, Battery 6V 11Ah |
| Saddle Height: | 29.01 Inches (737 mm) |
|
| Ground Clearance: | ||
| Wheelbase: | 52.00 Inches (1321 mm) | |
| Length (Overall): | 76.29 Inches (1938 mm) |
|
| Width (Overall): | 30.00 Inches (762 mm) | |
| Weight (Empty): | 259.91 Pounds (118 kg) |
|
| Wheel Rim: | 2 1/4 x 17 | 1.6 x 19 (Front); 1.85 x 18 (Rear) |
| Tire Size (Front): | 2.50 x 17 R | 2.75 x 19 R |
| Tire Size (Rear): | 3.00 x 17 S | 3.25 x 18 S |
Tech. specs are converted from the metric system! Fuel consumption ø
3,5 litres / 100 kilometer;

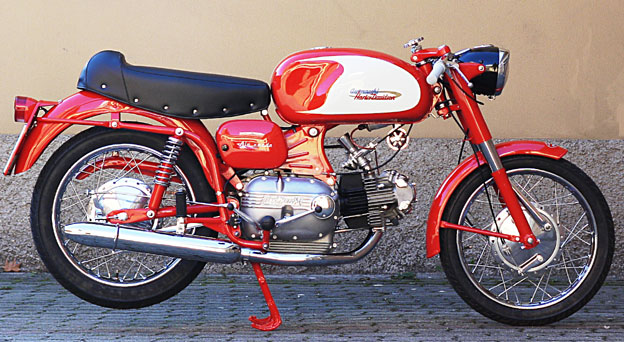

Ala Verde means "Green Wing";
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
