78910111213141516| Years built: | 68-71 |
| Bikes produced: | |
| Price in 1971: | $975 (US) |
| Vehicle Ident. # (VIN): | |
| Spark Plug: | |
| Gas Capacity: | 2.9 US Gallons |
| Transmission: | |
| Carburetor: | Dellorto SSJ 30D (30mm) |
| Electrical System: | |
| Saddle Height: |

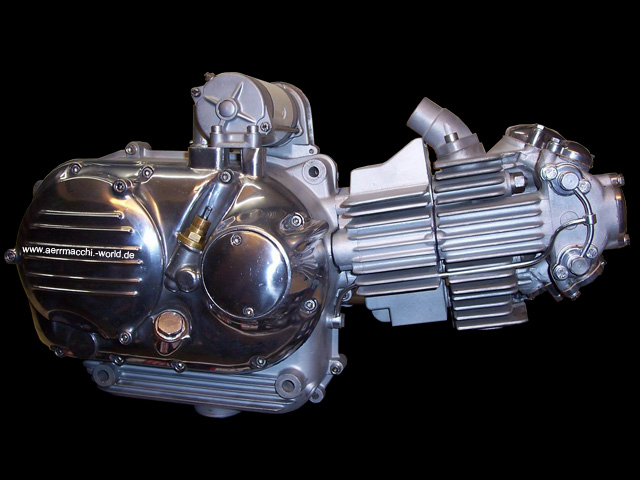

Engine
| Model designation letter: | ERS |
| Type: | 4 Cycle OHV single |
| Bore: | 2.91 inches |
| Stroke: | 3.15 inches |
| Piston displacement: | 350cc |
| Compression ratio: | 10.5 |
| Ignition System: | 1/2 engine speed magneto system |
| Power Output: | |
| Lubrication system: | |
| Starter system: | kick start with compression release for easy starting |
| Overall length: | |
| Handlebar width: | |
| Ground clearance: | |
| Weight: | |
| Wheelbase: | |
| Saddle Height: | |
| Seats: | 1 person |
| Front suspension: | Ceriani, Moto Cross Hydraulic damped |
| Rear suspension: | Ceriani racing shocks |
| Fuel tank: | rubber mounted |
| Transmission: | 4-Speed |
Transmission System
| Clutch: | |
| Gear ratios: | |
| Gearshift pattern: |
Wheels and Brakes
| Front wheel tire: | 3.50 x 19 Pirelli Universal |
| Rear wheel tire: | 4.00 x 18 Pirelli Universal |
| Front brake: | dual shoe, single leading |
| Rear brake: | |
| Rims (Front & Rear): | |
| Tire pressure (Front): | |
| Tire pressure (Rear): |

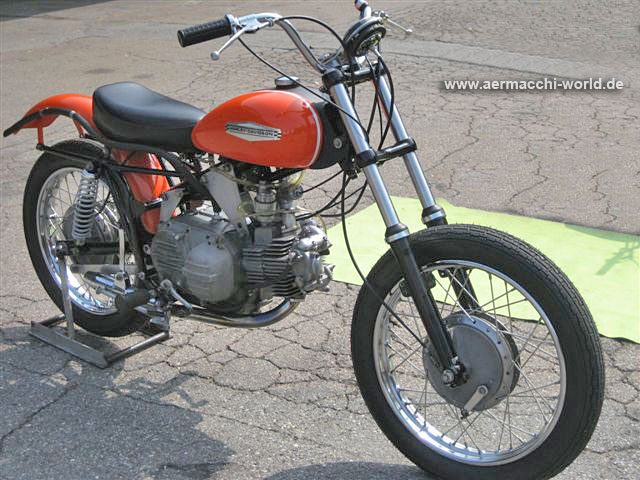

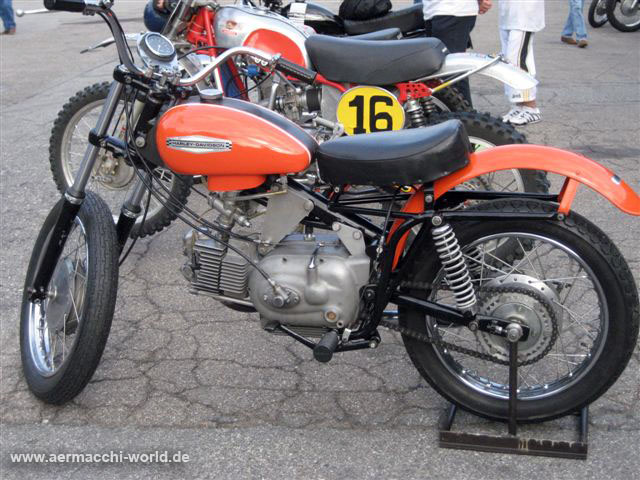

The ERS was a competition model |
