Years built: | 1971 only (model year 1972 only) |
Bikes produced: | 8000 |
Price in 1972: | |
Vehicle Ident. # (VIN): | 5C |
Spark Plug: | Harley-Davidson 5-6 |
Gas Capacity: | 1.4 US Gallons, Reserve 1.75 Quart |
Transmission: | Constant Mesh, 3 Speed |
Carburetor: | Dell'Orto ME 18 BS |
Electrical System: | 6V |
Saddle Height: |
Engine
Model designation letter: | MC |
Type: | 2-Cycle, Single Cylinder, Air Cooled |
Bore: | 1.732 Inches (44mm) |
Stroke: | 1.654 Inches (42mm) |
Piston displacement: | 63.86 Cubic Centimeters |
Compression ratio: | 8.5:1 |
Lubrication system: | premix 1:25 |
Starter system: | kickstart, left side |
Overall length: | 56.1 Inches |
Handlebar width: | 32.5 Inches |
Ground clearance: | 5.7 Inches |
Wheelbase: | 39.2 Inches |
Seats: | 1 person |
Front suspension: | Telescopic NOT oil dampened |
Rear suspension: | Swinging arm, oil dampened stereo shocks |
Fuel tank: | 5,3 litres (1.4 gallons) Total |
Transmission: | |
Front fork: |
Transmission System:
Clutch: | wet, multi plate |
Gear ratios: | 1st: 20.0 to 1, 11.5 to 1, 7.6 to 1 |
Gearshift pattern: | 1 up - 2 down, left side |
Wheels and Brakes
Front wheel tire: | 3.00 x 10 (Pirelli MT 74) |
Rear wheel tire: | 3.00 x 10 (Pirelli MT 74) |
Front brake: | internal expanding |
Rear brake: | internal expanding |
Rims (Front & Rear): | Disc Wheel, 2 Pieces, WM1= 1.6x 10" |
Tire pressure (Front): | 18 PSI |
Tire pressure (Rear): | 22 PSI |

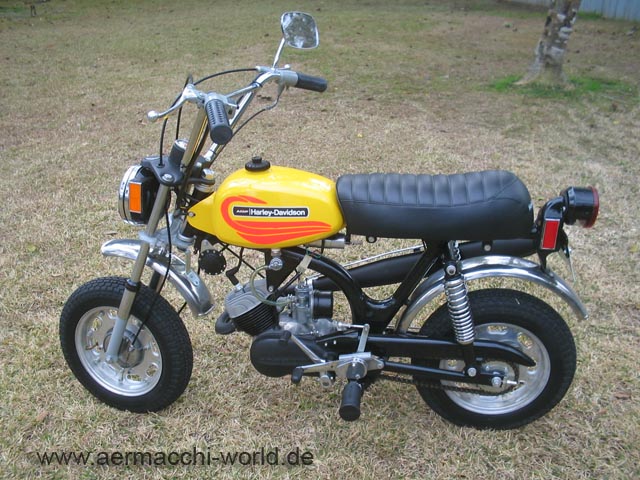

The Shortster (MC-65) was available in three different colors. In yellow, sparkling

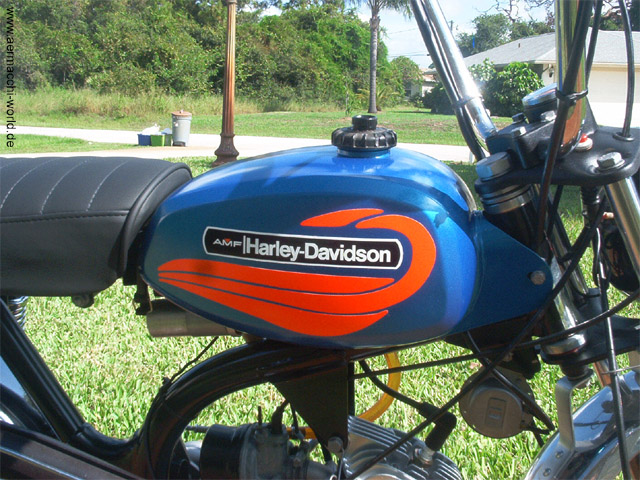

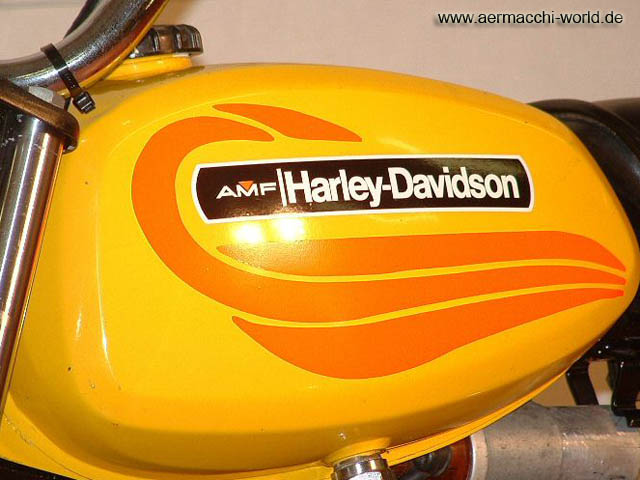

red and in sparkling blue. Fenders were always stainless steal. The gas tank
decals were always bright red and in a "flame style". The Shortster has a three speed gearbox and is shifted from the left side. The first gear is about neutral, second and third gear below. It was not equipped with a fuel pump as the later X90 and so you have to premix the oil/gasoline manually when filling the gas tank. |
1 | 2 | 3 | 4 |
5 | 6 | 7 | 8 |
9 | 10 | 11 | 12 |
13 | 14 | 15 |

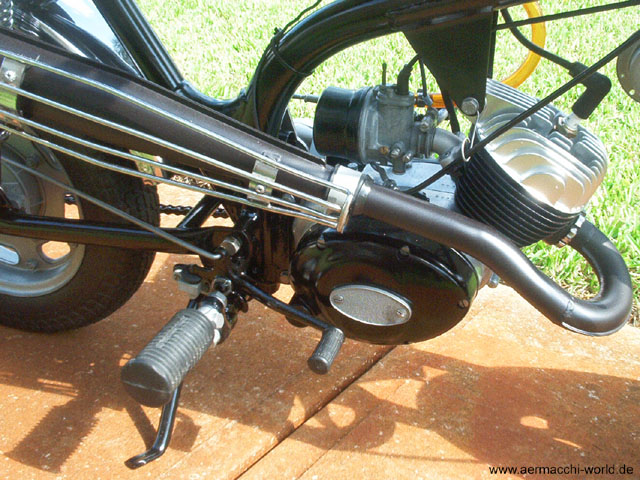

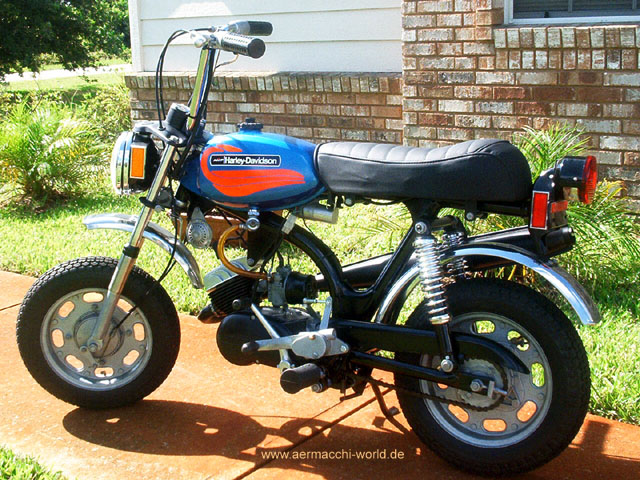

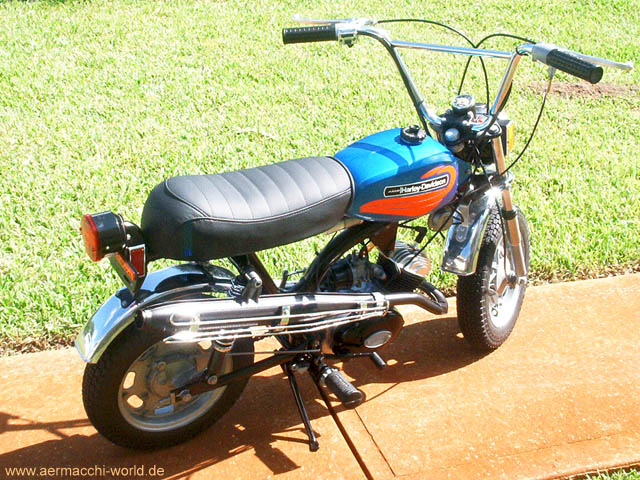

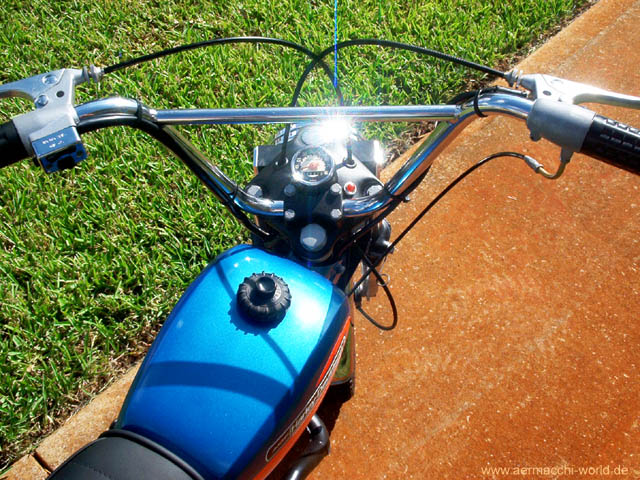

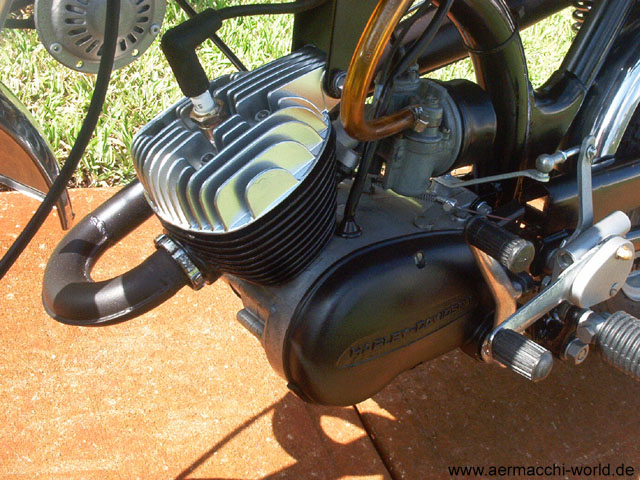

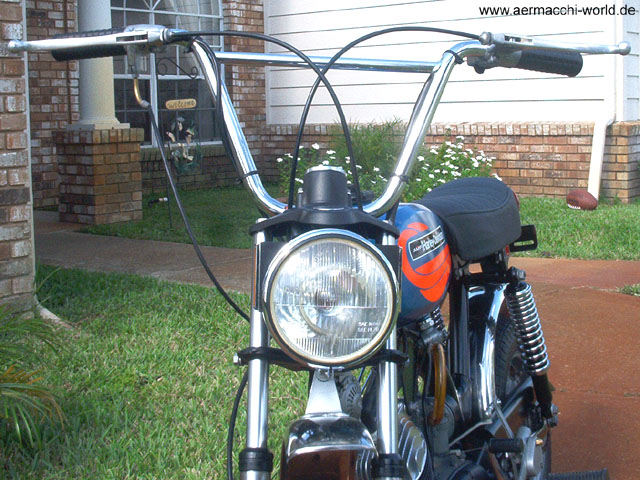

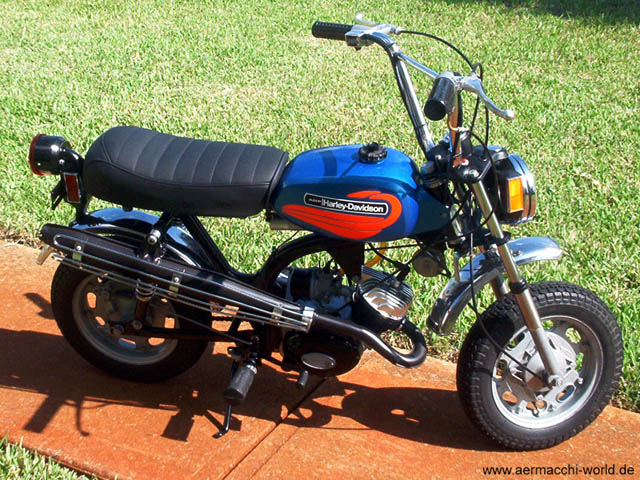

Thanks to Greg from Florida for the pictures of the restored shortster.

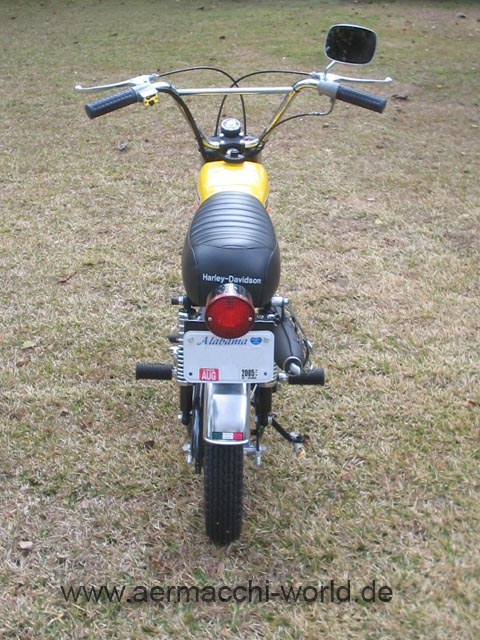

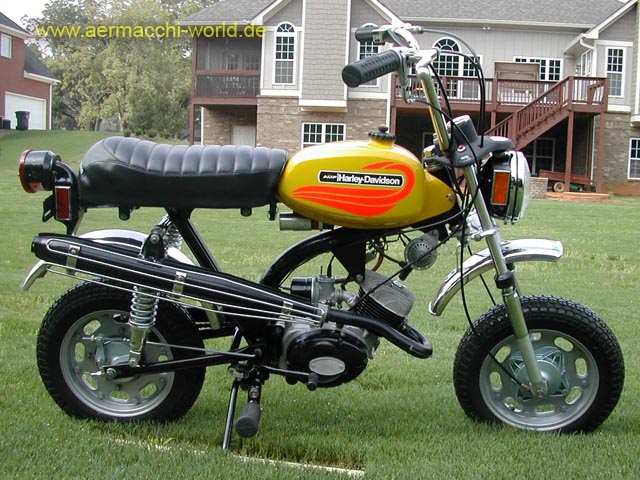

Thanks to Todd for the picture of his yellow Shorty.
